Prefabricated Quality Comfort Sleep and Working Compartment Pod

Prefabricated Quality Comfort Sleep and Working Compartment Pod

Prefabricated Quality Comfort Sleep and Working Compartment:is a prefabricated ,portable soundproof modular structure working and sleeping compartment, its designed to meet diverse demands of teams and families in modern scenariors, the modular structure allows for flexible placement,whatever in home office or open-plan public workspaces to share environments to eliminating restriction on locations.

  • Item No :

    OB-L5
  • Order(MOQ) :

    8
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Red/Grey/White/Wood Grain/Customized
  • Shipping Port :

    By Sea
  • Lead Time :

    10~15 days
  • Weight :

    Net Weight:280kg, Gross Weight:350KG with wooden box packing
leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

Prefabricated Quality Comfort Sleep and Working Compartment

Prefabricated Quality Comfort Sleep and Working Compartment is a innovative solution for sleep and working compartment, which with a modular design that enables quick assemble amd flexible deployment.We produce in prefabricated modular which all components are precision manufactured in factories, and on-site assemble which requires simple splicing and reducing the interference when we are working in the environment.



The space design is flexible and diverse, ranging from solo focus workstations to small meeting cabins that accomodate 2~6 persons, you can be freely combined modular according to your team size, not only you can share working opinions with teammates in the sharing space, but also can have your own privacy when you are need high focus on your project.


Industries Application


Prefabricated Quality Comfort Sleep and Working Compartment

Work Sound Insulation Meeting Room Pod

Modular Prefabricated Soundproof Office Cabin





 Product Specification

Product Model   OB-L4
Dimension:
 External: 200 x 120 x 233 cm   (41.5“x 40“ x 92“)
Internal: 186 x 104 x 206 cm       (36.3” x 36.6’” x 81.1”)
Parameter:
 Capacity:??
Power Output:  85~264V AC47~63hz
Ventilate:  0-70m³(91yd³)/hr. adjustable, Every 1.6mins complete a flesh air, which automatic when vacant.
Light:  3000k-600k, 0-, 1800 lm adjustable,
Anti-dazzle 20,CRI: color rendering 92R2Ra, Non-strobe
Maximum Power Output:  60W
Power-up:  5-holes universal socket x 2, USB Type A x 1, USB Type C x 1
Configuration:
• External:1 x power supply cord / 1 x door lock /  6 x swivel wheel,/ 4x feet support
Internal:1 x socket / 1 x switch on-off

Furniture Option:

Searing Chair & Desk: Pending(Optional)

Structure:

• Double-side metal plates, with eco-friend vibration aluminum layer x 2
Insulation Layer: Eco-Absorb fiberglass , 12mm wooden panel
9mm Polyester fiber acoustical panel, fasten on 8mm
Tempering glass + door 8mm Tempering glass

  •

Modular Prefabricated Soundproof Office Cabin





Product Features

A PORTABLE COMFORT SOUNDPROOF SPACE

With options for single-person and multi-person cabin, as well as customizable features like integrated lighting, ventilation systems, and power outlets, the Modular Prefabricated comfort sleep and working compartment can be tailored to meet the specific needs of your office and home.

Beyong the core function as a rest and peace space, the compartment serves a s a prvate zone which provide a perfect environment for online meeting, video conference, or focus work, make sure non-interrupted communication and concentration.Inside space it is totallu equipped with essential amenities, inclding a reliable ventilation system to maintain air circulation and multiple power ports for charging devices or connecting facilities.

As its high-performance soundproof system, which can effectively blocks external noise and prevents the sound leakage, creating you a quite , insulated space that balances privacy, comfort, and multi-function for mordern work and rest demands.



  •
  • #
    Insulation Tempered Glass
    The freely assembled and Modular Prefabricated Soundproof working compartment does more than just require strict safety glass.
  • #
    Damping Feet
    Vibration-damping rubber pads, with key bearing capacity and damping, use virgin rubber even for hidden compartment bottoms. Suspension design reduces sound bridges, aiding moisture resistance and maintenance.
  • #
    Centrifugal Fan
    High wind pressure, low noise, labyrinth duct, 125m³/h, air renewal every 2 mins, ensures O₂ & CO₂ emission.
  • #
    Preferred Furniture
    The furniture configuration designed for office cabin in combination with ergonomics is an important component . At the same time, MODUPO designers have made preparations for predictable expansion, and each has preset furniture installation nodes for different usage scenarios.



  • Office Space Soundproof Work Pod
    Sensor Motion
    We are focusing on energy saving and environmental protection, MODUPO Modular Prefabricated Soundproof working compartment has a motion sensor which controls lighting and ventilation. The systems work only when you're inside, saving energy and being eco - friendly.
  • Office Space Soundproof Work Pod
    Sound Insulation
    Insulation Acoustic Simulate precisely accurately predict and achieve the booth's sound insulation performance. Both standard and PLUS versions can meet different usage scenarios' needs. provide you a more privacy and silent enviroment on focusing work.
  • Office Space Soundproof Work Pod
    Lighting
    The Modular Prefabricated Soundproof Office Cabin are equipped with a 4000K natural light color temperature LED central main lighting system. Different setup is  tailored to various sizes, ensuring excellent performance and proper illumination for each work pod configuration.
  • Office Space Soundproof Work Pod
    Fasten Assemble
    We designed features a simple, eco-friendly model with SOLIDWORKS, using only 90-degree fasteners and ensuring structure. No screws, nails, or glue—just easy assembly and a minimalist look, seting up with a straightforward, clean aesthetic.



Prefabricated Quality Comfort Sleep and Working Compartment

2 person soundproof cabin

modular soundproof cabin


leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Flexible Office Space Soundproof Work Pod
Office Space Soundproof Work Pod

Office Space Soundproof Work Pod, which is designed for your working, helping you to block noise in office for productive solo or small-team, providing you a private space on focus working.

Details
Single-Person Office Phone Booth
Single-Person Office Phone Booth

Single-Person Office Phone Booth: is a kind of compact and enclosed structure which is special for providing a private and quiet space for solo working, for those openning offices and shared working spaces to make phone calls, or focus on solo work without distractions-to avoiding noise, lack of privacy and disttract difficulties.

Details
Remote Work Sound Insulation Meeting Room Pod
Remote Work Sound Insulation Meeting Room Pod

Remote Work Sound Insulation Meeting Room Pod:is a portable insulation pod for those remote teams working demands, which is flexible locate at home or in a public working office area, providing for whose on-line meeting conference and private insulation space, inside is equipped with ventilation, power port with high-performance soundproofing system.

Details
Modular Prefabricated Soundproof Office Cabin
Modular Prefabricated Soundproof Office Cabin

Modular Prefabricated Soundproof Office Cabin:is a portable and prefabricated Soundproof Cabin for those teams working demands, which is flexible locate modular at home or in a public working openning office area, providing for whose on-line meeting conference and private insulation space, inside is equipped with ventilation, power port with high-performance soundproof system.

Details
Silent Compact infant sleep space
Soft-padded Infant Sleep Pod

Soft-padded Infant Sleep Pod:is a portable cozy,womb-like environment for babies.plush padding ensures gentle support, while breathable fabric regulates temperature. we promoting your babies a longer, more restful sleep-ideal for naps and overnight comfort, giving mothers a peaceful and relexing moment when taking care of baby.

Details
Modern Design for Quiet Soundproof Sleep Office Pod
Prefabricated Quality Comfort Sleep and Working Compartment Pod

Prefabricated Quality Comfort Sleep and Working Compartment:is a prefabricated ,portable soundproof modular structure working and sleeping compartment, its designed to meet diverse demands of teams and families in modern scenariors, the modular structure allows for flexible placement,whatever in home office or open-plan public workspaces to share environments to eliminating restriction on locations.

Details

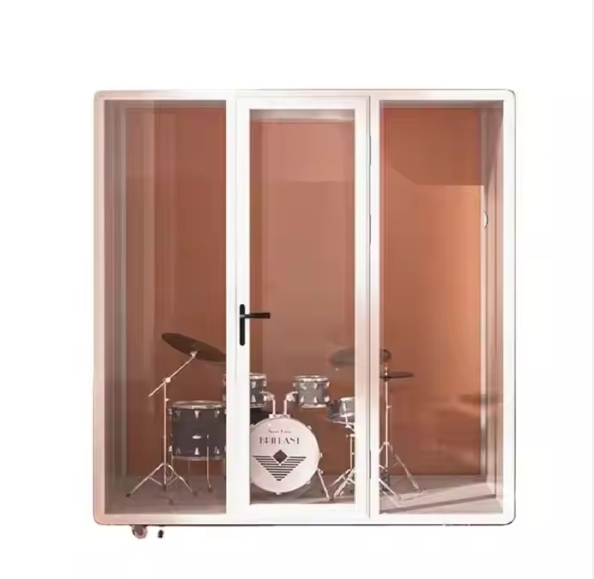

Soundproof Cabin For Music Player
