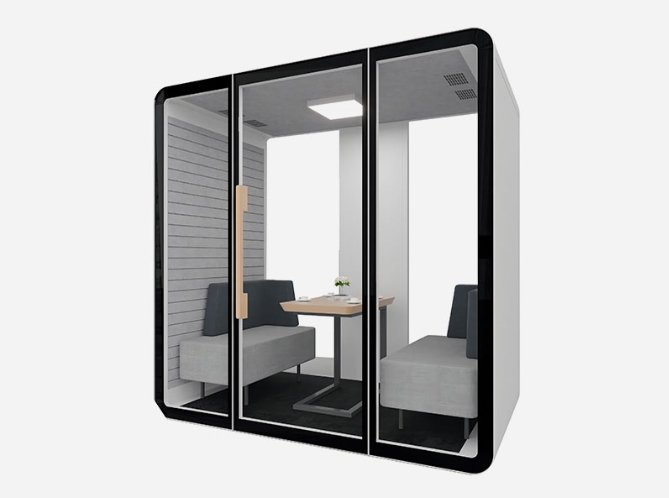

Modupo Acoustic Office Meeting Booth

Modupo Acoustic Office Meeting Booth

Modupo Acoustic Office Meeting Booth is a portable and acoucstic office meeting booth for those teams working demands, which is flexible locate modular at home or in a public working openning office area, providing for whose on-line meeting conference and private insulation space, inside is equipped with ventilation, power port with high-performance soundproof system.

  • Item No :

    OB-L4
  • Order(MOQ) :

    8
  • Payment :

    T/T
  • Product Origin :

    China
  • Color :

    Red/Grey/White/Wood Grain/Customized
  • Shipping Port :

    By Sea
  • Lead Time :

    10~15 days
  • Weight :

    Net Weight:280kg, Gross Weight:350KG with wooden box packing
leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit

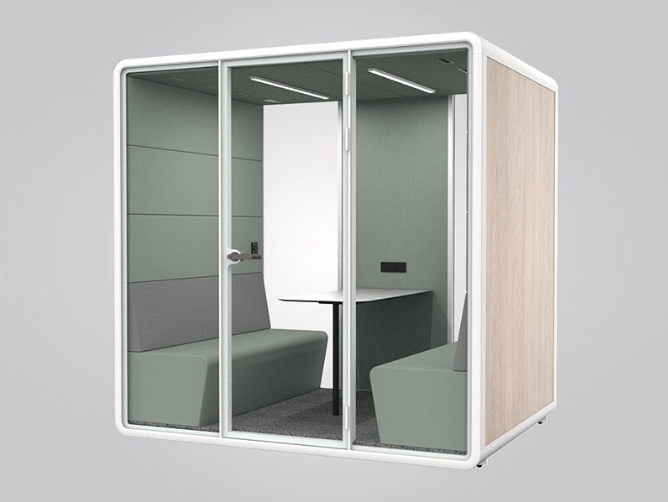

Modular Prefabricated Soundproof Office Cabin

Modular Prefabricated Soundproof Office Cabin:is a innovative solution for modern office space, which with a modular design that enables quick assemble amd flexible deployment.We produce in prefabricated modular which all components are precision manufactured in factories, and on-site assemble which requires simple splicing and reducing the interference when we are working in the environment.

The space design is flexible and diverse, ranging from solo focus workstations to small meeting cabins that accomodate 2~6persons, you can be freely combined modular according to your team size, not only you can share working opinions with teammates in the sharing space, but also can have your own privacy when you are need high focus on your project.


Industries Application


Modular Prefabricated Soundproof Office Cabin

Work Sound Insulation Meeting Room Pod

Modular Prefabricated Soundproof Office Cabin





 Product Specification

Product Model   OB-M Size
Dimension:
 External: 200 x 120 x 233 cm   (41.5“x 40“ x 92“)
Internal: 186 x 104 x 206 cm       (36.3” x 36.6’” x 81.1”)
Parameter:
 Capacity:??
Power Output:  85~264V AC47~63hz
Ventilate:  0-70m³(91yd³)/hr. adjustable, Every 1.6mins complete a flesh air, which automatic when vacant.
Light:  3000k-600k, 0-, 1800 lm adjustable,
Anti-dazzle 20,CRI: color rendering 92R2Ra, Non-strobe
Maximum Power Output:  60W
Power-up:  5-holes universal socket x 2, USB Type A x 1, USB Type C x 1
Configuration:
• External:1 x power supply cord / 1 x door lock /  6 x swivel wheel,/ 4x feet support
Internal:1 x socket / 1 x switch on-off

Furniture Option:

Searing Chair & Desk: Pending(Optional)

Structure:

• Double-side metal plates, with eco-friend vibration aluminum layer x 2
Insulation Layer: Eco-Absorb fiberglass , 12mm wooden panel
9mm Polyester fiber acoustical panel, fasten on 8mm
Tempering glass + door 8mm Tempering glass

  •

Modular Prefabricated Soundproof Office Cabin





Product Features

Modular Prefabricated Soundproof Office CabinThe interior is fully equipped with low-loise ventilation devices to ensure smooth air circulation, preventing suffiness even during long-term use.

With options for single-person and multi-person cabin, as well as customizable features like integrated lighting, ventilation systems, and power outlets, the Modular Prefabricated Soundproof Office Cabin can be tailored to meet the specific needs of your office.

    • #
      Insulation Tempered Glass
      The freely assembled and Modular Prefabricated Soundproof Office Cabin does more than just require strict safety glass.
    • #
      Damping Feet
      Vibration-damping rubber pads, with key bearing capacity and damping, use virgin rubber even for hidden office cabin bottoms. Suspension design reduces sound bridges, aiding moisture resistance and maintenance.
    • #
      Centrifugal Fan
      High wind pressure, low noise, labyrinth duct, 125m³/h, air renewal every 2 mins, ensures O₂ & CO₂ emission.
    • #
      Preferred Furniture
      The furniture configuration designed for office cabin in combination with ergonomics is an important component . At the same time, MODUPO designers have made preparations for predictable expansion, and each has preset furniture installation nodes for different usage scenarios.



    • Office Space Soundproof Work Pod
      Sensor Motion
      We are focusing on energy saving and environmental protection, Acoustic Office Meeting Booth has a motion sensor which controls lighting and ventilation. The systems work only when you're inside, saving energy and being eco - friendly.
    • Office Space Soundproof Work Pod
      Sound Insulation
      Insulation Acoustic Simulate precisely accurately predict and achieve the booth's sound insulation performance. Both standard and PLUS versions can meet different usage scenarios' needs. provide you a more privacy and silent enviroment on focusing work.
    • Office Space Soundproof Work Pod
      Lighting
      The Acoustic Office Meeting Booth are equipped with a 4000K natural light color temperature LED central main lighting system. Different setup is  tailored to various sizes, ensuring excellent performance and proper illumination for each work booth configuration.
    • Office Space Soundproof Work Pod
      Fasten Assemble
      We designed features a simple, eco-friendly model with SOLIDWORKS, using only 90-degree fasteners and ensuring structure. No screws, nails, or glue—just easy assembly and a minimalist look, seting up with a straightforward, clean aesthetic.



    Modupo Acoustic Office Meeting Booth

    2 person soundproof cabin

    modular soundproof cabin

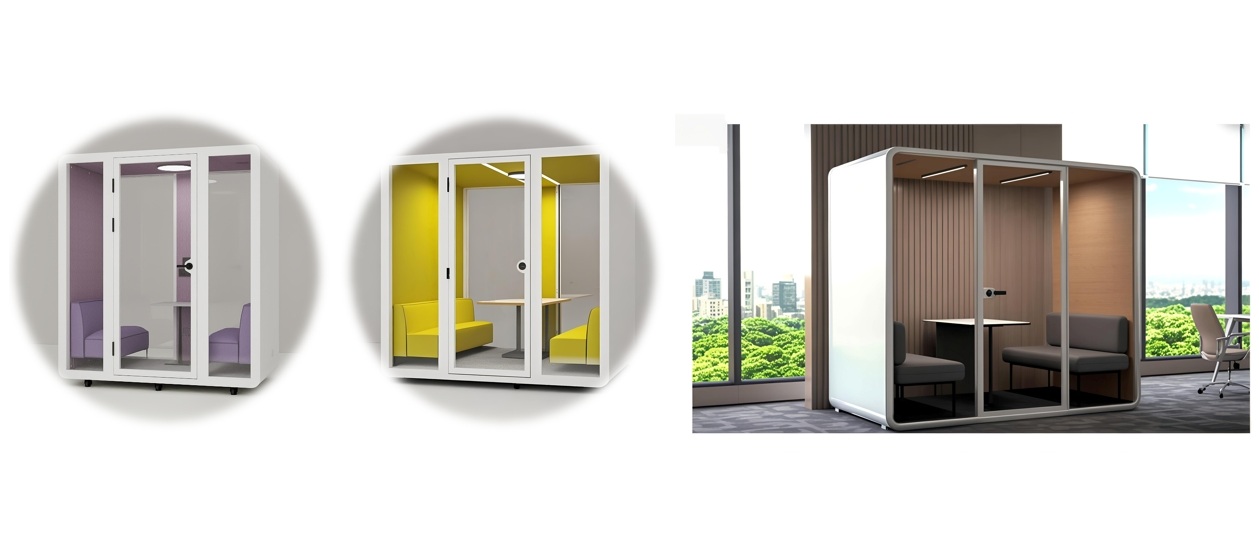

    Why an office needs Modupo?
    Our primary objective in developing the Modupo Acoustic Booth is to offer organizations a complete and all-encompassing solution that not only effectively tackles the prevalent acoustic challenges and privacy concerns faced in modern office spaces but also prioritizes user-friendliness and environmental sustainability. We understand the crucial role that a harmonious and conducive work environment plays in promoting employee productivity, overall wellbeing, and successful collaboration. With this in mind, our meticulously designed acoustic booths are thoughtfully crafted to create a sanctuary that facilitates focus, minimizes distractions, and provides individuals with a sense of privacy when needed. Moreover, we are committed to environmentally conscious practices, ensuring that our booths are constructed using eco-friendly materials and incorporating energy-efficient features. By choosing the Modupo Office Acoustic Booth, organizations can embrace a holistic approach to work space design that not only enhances performance and collaboration but also contributes to a greener future.



    01 Enhance Privacy
    The soundproofing enclosures provide individuals with a dedicated space to have confidential conversations. This is particularly important in industries such as finance, health care, and legal services, where sensitive data must be protected.



    02 Boost communication
    The materials used in acoustic booth construction effectively insulate ambient noise, reducing echoes and reverberations that can interfere with audio quality. This improves sound quality and ensures that phone calls and video conferences are more intelligible and efficient, enabling effective communication and collaboration even in a busy office environment.



    03 Improve Concentration
    The soundproofing properties of the booth effectively block out external noises, allowing employees to concentrate without interruptions. The enhanced concentration fostered by acoustic booths ultimately leads to increased productivity and quality of work.



    04 Versatility
    The acoustic booth is available in multiple sizes that are thoughtfully planned to fit most of the office situation. The modular design makes it easy to customize, build, and extend. Moreover, the caster wheel enables easy relocation, providing flexibility to adapt to changing needs.



    05 Sustainability
    Not just using certificated material, the booth was for modular designed and manufactured to avoid the disadvantage of the conventional way to build a room such as "wet work" which creates waste and stains, and the heavy power tool that produces loud noise. That makes it the best way to upgrade an in-use office.



    06 Being an asset
    All features of the acoustic booth makes it an compliant asset rather than an expense to a company. The rebuildable property allows businesses to adapt their workspace at minimum costs or resell the booth for liquidity, providing long-term value and contributing to a dynamic and efficient office environment.
